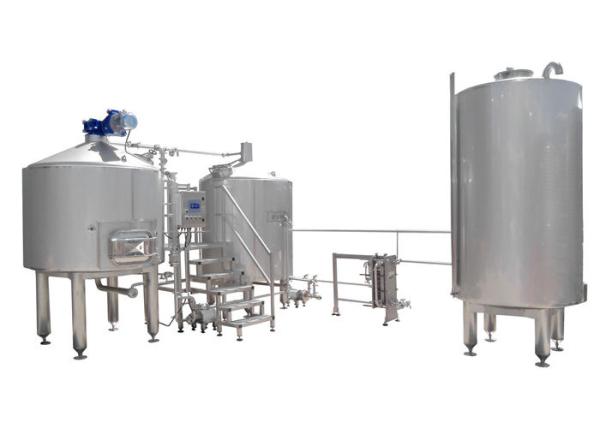

8HL Small Brewery Equipment 2 Vessels Brewhouse Semi-Automatic Control
Beer equipment is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned, but larger than breweries for restaurant, bars etc., as it distributes beer to local restaurants and bars, parties etc. To run a micro brewery and get suitable margin from this kind of business model, we suggest to start from 1000L/brew capacity minimum that concerning both the budget limitation and expanding capacity in future. Also 2000L-3000L beer equipment are common to see for a little larger business. Craft beer equipment is more professionally functional and concerns more details to brew in a more smart way, trying to decreasing the factors that may affect the brewing speed or beer flavors.
Quick Overview
| Output/Brew |
8 HL |
| Brew/day |
1-2 |
| Output/Week |
10 HL-80 HL/week based on different configuration |
| Electric Supply |
3phase/380(220, 415,440…)v/50 (60)Hz |
| Heating Source |
Electric (Optional Direct fire/steam) |
| Area Request |
>30M2 |
| Brewmaster |
1 |
| Mashing method |
Infusion,multi-step infusion |
Main Configuration
| Main brewing system |
Components |
Main specification |
| Brewhouse unit |
Mash/lauter/Whirlpool tun |
8 HL
25% head space,
Steam heating with insulation
False bottom,
Rake&motor,
Spent grain outlet
CIP, sight glass.
Tangential inlet. |
Kettle tun |
8 HL
30% head space,
Steam heating with insulation
Steam condenser,
Wort outlet and trub outlet |
| Wort pump |
3T/hr, Sanitary |
| Hot liquor pump |
3T/hr, Sanitary |
Plate heat exchanger |
8m2
Two stages
Connected with wort aeration device
Disassemble |
| Work platform |
Disassemble,
Adjustable |
OPTIONAL |
Wort grant
Hopback
Hopper
Pneumatic valve
Wort flow meter
Sink
Sterile air compressor |
| Fermentation unit |
Fermentation tank |
8 HL/16 HL
25% head space,
Jacketed and insulated
Conical bottom,
Pressure valve, relief valve
CO2 relief valve
Coolant inlet and outlet
Sample valve
Side manway
Top, Dry Hopping Port
CIP connections
Wort inlet and yeast outlet
Racking arm
Temperature and pressure gauges |
Maturation/Storage
|
Bright beer tank |
800L/1600L
20% head space,
Jacketed and insulated
Dished head&bottom
Pressure valve, relief valve
Site Glass level
Carbonation stone assembly
Sample valve
Side manway
Fill/drainage port
CIP connections
Temperature and pressure gauges
Jacketed and single wall tanks |
| Glycol cooling system |
Glycol cooling tank |
Thermowell
Top manway
CIP arm and spray ball 360 degree of coverage |
| Cold liquor tank (OPTIONAL) |
Thermowell
Top manway
CIP arm and spray ball 360 degree of coverage
Visual level sight glass
Cooling jackets |
| Chiller |
Second generation
Freon R410A, R404A |
| Glycol water pump and piping |
|
| Controlling unit |
Brewhouse control panel |
Temperature monitoring& controlling
Pump on/off control
VFD control |
| Cellar control panel |
Temperature monitoring& controlling
More controllers reversing for expansion available |
Cleaning unit |
Alkali tank |
100L
Electric heating |
| Sterile tank |
100L |
| Pump and piping |
|
Optional items: Beer filter, Keg filling system, Bottle filling system
Steam boiler, Water filter, Kegs, Malt transfer (grain auger)
Customized requirement acceptable
Contact us immediately to get latest specification and price of 8HL Small Brewery Equipment 2 Vessels Brewhouse Semi-Automatic Control.
