Double Jacketed Stainless Steel Storage Tank , Stainless Steel Mixing Tank

Product Categories
Hubei Yideli Light Industry Technology Co., Ltd.
Contact Now

Double Jacketed Stainless Steel Storage Tank , Stainless Steel Mixing Tank

  • 1
  • 2

Brand Name : YDL

Model Number : YDL

Certification : ISO , CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 Sets / Month

Delivery Time : Within 30 - 60 Days

Packaging Details : With plastic foam firstly and then outside by wooden cases(standard export packaging)

Material : Stainless Steel 304 / 316L

Color : Mirror Polish / Steel

Thickness : 2.00 mm - 3.00 mm

Mixing Drum Shape : Conical

Layer : Customized

Capacity : 300L

Contact Now

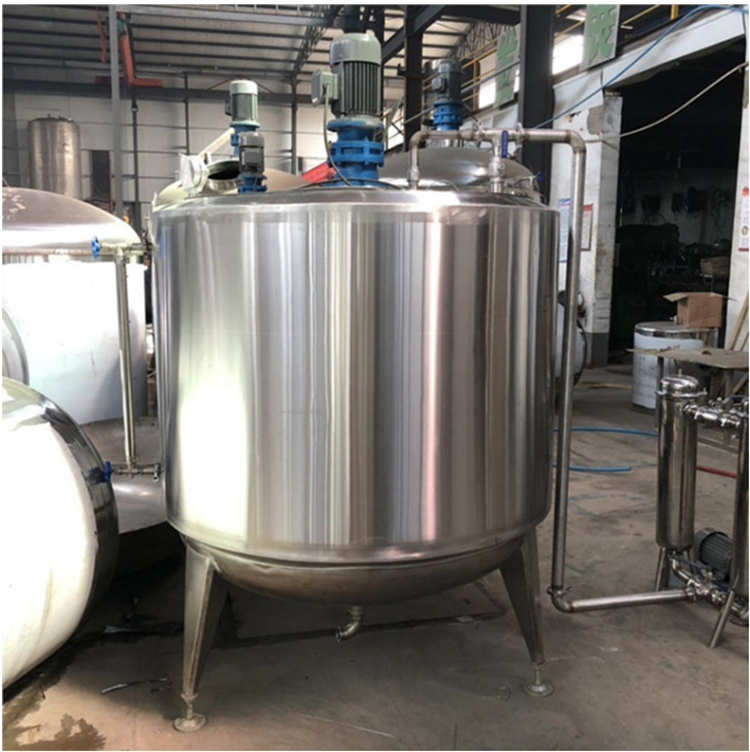

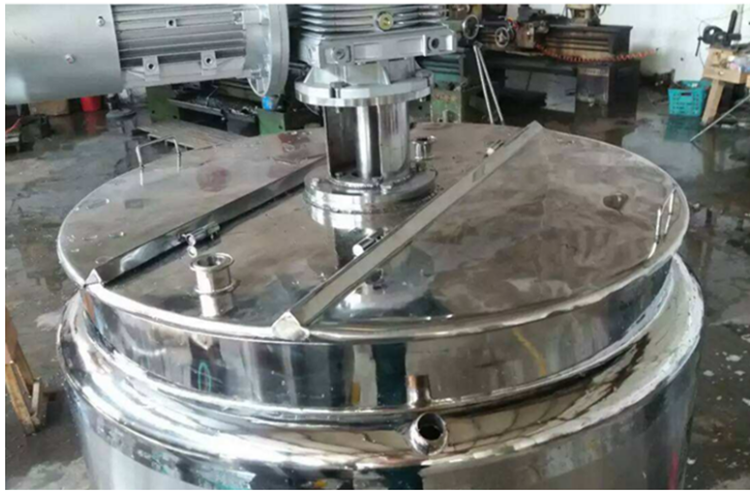

Double Jacketed Stainless Steel Mixing Tank Storaging And Blending Tank

Product Name: mixing tank
Brand: YDL
Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.4um
Certification: CE ISO9001


Used as mixing tank, blending tank etc.
Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics:
Made of single-layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Configuration of tank:
Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly
Thermometer (According to customer requirements ).
Ladder (According to customer requirements).
Paddle blender.
Liquid level meter and lever controller (According to customer requirements).

Mixer Paddle Suitable for low viscosity liquid.such as milk,beverage,beer etc.
Anchored Suitable for stirring medium viscosity material
Frame Suitable for stirring porridge-type material
Scrape Petrochemicals, pesticides, fine chemicals, high polymer, pharmaceutical, food, cosmetics, dyes, paints, water treatment and other industries.
Emusifier An emulsion is a mixture of two or more liquids that are normally immiscible (unmixable or unblendable). Emulsions are part of a more general class of two-phase systems of matter called colloids.Food (dairy) products, beverage, pharmaceutical, chemical and other industries, the material for mixing, emulsifying effect
Scattered disk The jagged coatings up and down ,to finish a high-speed shear, impact, crushing, dispersion to paints, dry, solid - liquid materials etc, in order to achieve rapid mixing, dissolving, dispersing, refined state.
Magnetic agitation A magnetic stirrer or magnetic mixer is a laboratory device that employs a rotating magnetic field to cause a stir bar (also called "flea") immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid.Pharmaceutical, fine chemicals, cosmetics, biotechnology and other industries

Volume Body Diameter X Body Height Total Height Insulate PU Foam Inlet&Outlet
(L) (mm*mm) (mm) (mm) (mm)
500 840*1000 2300 60 38
600 920*1000 2400 60 38
700 990*1000 2400 60 38
800 950*1220 2550 60 38
900 1010*1220 2700 60 38
1000 1060*1220 2700 60 51
2000 1340*1500 2750 60 51
3000 1410*2000 3500 60 51
5000 1910*2000 3850 60 51
10000 2300*2440 4500 60 51
15000 2530*3000 5200 60 51
20000 2640*3660 5800 60 51

Double Jacketed Stainless Steel Storage Tank , Stainless Steel Mixing TankDouble Jacketed Stainless Steel Storage Tank , Stainless Steel Mixing Tank
