1500L Stainless Steel Large Brewing Equipment Semi - Automatic In Beer Production

Hubei Yideli Light Industry Technology Co., Ltd.
Contact Now

1500L Stainless Steel Large Brewing Equipment Semi - Automatic In Beer Production

  • 1
  • 2

Brand Name : YDL

Model Number : YDL

Certification : CE

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, D/P, T/T

Supply Ability : 30 / set / month

Delivery Time : within 30-60 days

Packaging Details : Standard export packing for LCL and FCL

Material : SS304 / 316

Capacity : 1500L

Control system : Semi-automatic

Heating method : Electricity or Steam

Inner shell : 3mm, mirror polish, ss304

Mashing : Decoction ,infusion

Cooling jacket : dimple plate

Contact Now

1500L Stainless Steel Large Brewing Equipment In Beer Production With Semi-Automatic

The whole set equipment is made of SUS304 stainless steel.The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements. Widly used in brewery,bar, hotel etc.

Brewhouse material: SUS304 stainless steel, half red copper, red copper can be choose as your like.

1500L Beer Brewing System
Milling System
Components
Capacity
Specification
Grinding System
Miller
500KG/H
Double Roller,Noise<40db
Brewing System
Components
Capacity
Specification
Brewhouse System
Mash/Lauter tun
1500L
Mashing Process:Decoction.Infusion.Multi-step infusion
Brew Kettle/Whirlpool Tank
1500L
Heating sources: steam, electric, direct fire
Hot WaterTank
2000L
Matereial: SUS304 stainless steel/ red copper
Heat exchanger
15SQM
Stainless steel plate
Fermentation System
Fermentation Tank
1500L/3000L
Top manway/Side manway
Drying hop port to brew IPA
Dimple Plate Cooling jacket
Carbonation port to fill CO2
Yeast Adding Tank
15L
SUS304 Stainless Steel
Cooling System
Glycol Water tank
4000l
Equiped with PU level indicator
Chiller
2*7HP
UL/CE certified electric elements,Copeland compressor
Pump
3T
Cleaning System
Disinfection Tank
150L
SUS304 full welded
Alkali Tank
150L
Pump
3T
Control System
Control Cabinet
Manual PLC/HMI
Manual/Semi-automatic/Automatic
Optional
Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller
Customized

brewhouse

Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combinationes. The capacity above 1000L, we add dimple plate jacket in the side of the brewhouse, can save nearly 40 minutes per batch.

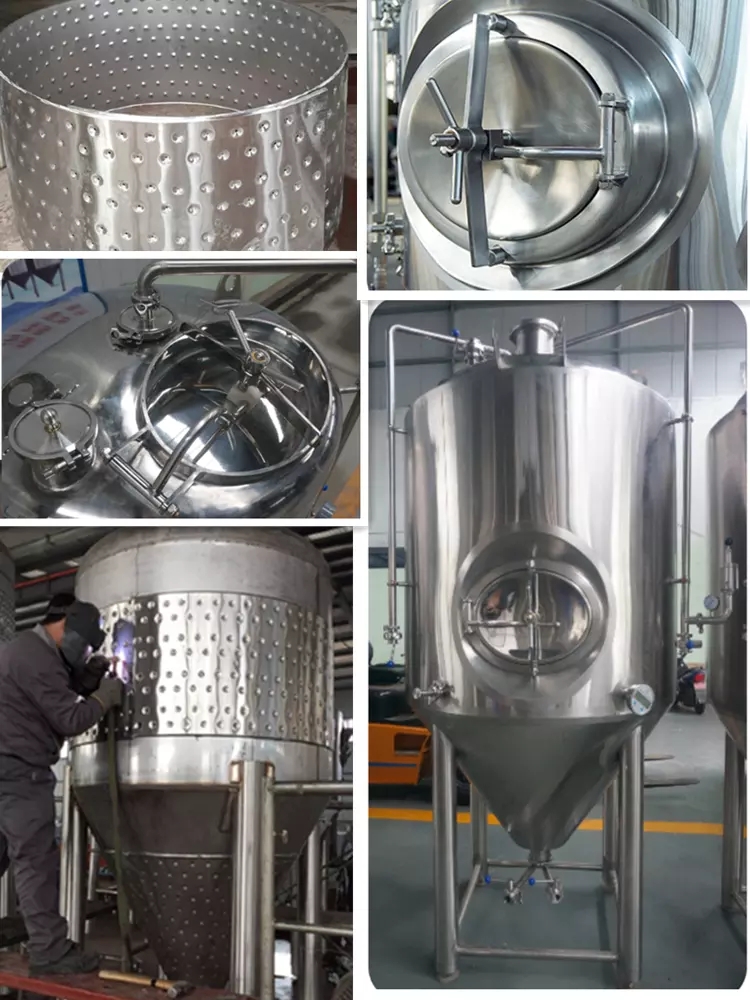

fermentation tank

With cooling jacket: Dimpled plate on cone and side,thickness:1.5mm

Top manway or side manway can be choose as your like.Interior Finish: Overall polishing to 0.4μm without dead corner

Accessories

High quality and sanitary beer brewery equipment accessories, with long service life, saft to user. Detail is also important, we focus on it.

1500L Stainless Steel Large Brewing Equipment Semi - Automatic In Beer Production
