500L Semi-auto Stainless Steel SUS304 Electric Heating Pub Brewing Systems
Quick Details
1: Products: Pub Brewing Systems
2: Capacity: 500L
3: Semi-auto Control
4: Material: Sanitary Stainless Steel SUS304 SS316L
5: Function: Beer Brewery
6: Over 10years strong factory
7: Customized service
Feature
| System | Components | Description & Specification | Quantity |
| Milling System | Malt Mill | material: stainless steel 304, crushing mode: electrical double roller. | 1 pc |
| Mashing System 2 Vessels | Mash Tun & Boiling Kettle stainless steel red copper | material: stainless steel 304, volume: effective 500L, tank shape: dish top and 150°conical bottom, three layers thickness: inner shell 3mm, dimple plate jacket 1.5mm, outer shell 2mm matt, accessories: fan-shaped manhole on top, CIP pipe & spray ball, Pt100 platinum resistance thermometer, | 1 set |
| Lauter & Whirlpool Tun stainless steel red copper | material: stainless steel 304, tank shape: conical top and flat bottom, three layers thickness: inner shell 3mm, outer shell 2mm matt.
upper lauter tun volume: effective 500L, accessories: glass manhole on top, CIP pipe & spray ball, top mixer, Pt100 platinum resistance thermometer, lower whirlpool tun volume: effective 500L, accessories: side manhole, glass tube level gauge, etc. | 1 set |
| Wort Pump | material: stainless steel 304, capability: 3000L/h, | 1 pc |
| Plate Heat Exchanger | material: stainless steel 304, exchange area: 7m2, | 1 pc |
| Mash Control Cabinet Semi-Automatic | material: stainless steel 304, | 1 pc |
| Working Platform & Piping | material: stainless steel 304 | 1 set |
Description
To make the best beer possible, the brew house is the key. On the basis of absorbing European advanced and experienced beer machinery technology, Our Brew house can fulfill various brewing technologies, variable tastes or specific capacities.
10BBL | 20BBL | 30BBL | 40BBL | 50BBL brewhouse sizes are produced standardly, or even larger for customers. The Brew house can be heated with Steam, Gas fired, Electric etc. The system composed of Mash Tun , Lauter Tun, Brew Kettle, Whirlpool Tank etc. The four tanks can be combined together to meet different requirement of brew system.
All the tanks certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet your brewery’s space and height restrictions.
Equipment Components:
2 Vessel Brew House
- 7BBL/10BBL/15BBL/20BBL/30BBL or customized
- Mash Lauter Tun with grist hydrator
- Kettle Whirlpool Tank with heating jacketed
- Grant Tank
- Stainless steel Platform
- Plate Heat Exchanger
- Sanitary Wort Pump x2;
- Wort Oxygenator;
- Semi-Auto Control Panel;
- Interior surface to finish pickled and passivate
- Exterior surface to brushed, #4 finish
Method of Heating Ways:
- Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;
- Electric: Use electric heaters in jacket to heat the medium in the jacket
- Gas fired: Use gas burner at bottom to heat tank directly;
Application
Our beer brewing equipment include malt crushing system, saccharification system, fermentation system, glycol system, CIP cleaning system, controlling system, packaging system and all complete set of bar selling system, or Micro beer brewery. We could provide customization service, OEM service. Different type of equipment configuration combination could be made as per customer’s requirement.

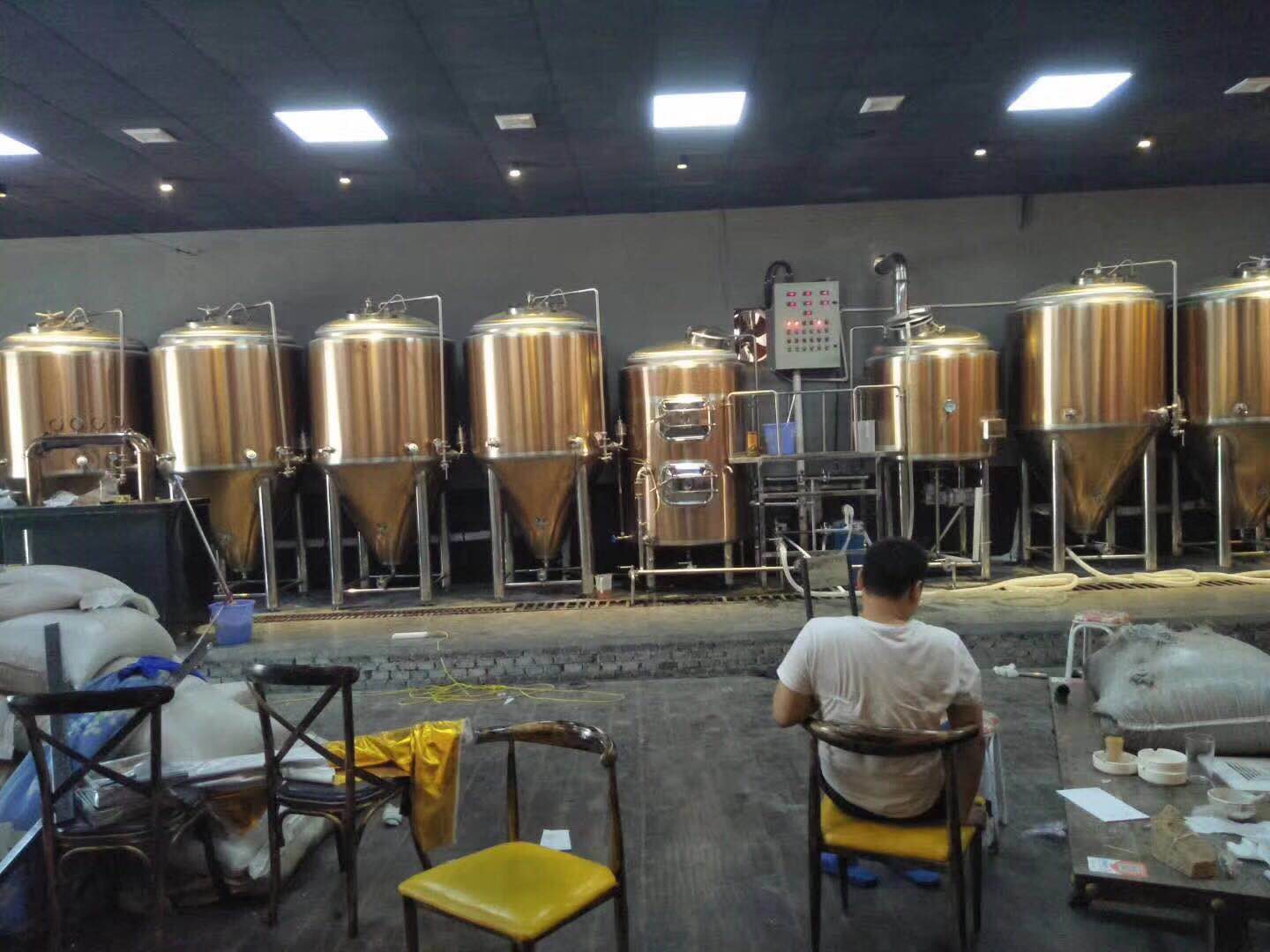

Our Project
